    Brake Disc - 502 005 TOPRAN
    Brake Disc - 502 005 TOPRAN
    Brake Disc - 502 005 TOPRAN
    Brake Disc - 502 005 TOPRAN
    Part Number: 502 005

    Brake Disc - 502 005 TOPRAN

    0 Reviews
    Brand: TOPRAN
    €47.89
    In Stock (5)
    • Brake Disc Type: Vented
    • Height [mm]: 66
    • Brake Disc Thickness [mm]: 24
    • Rim Hole Number: 5
    • Fitting Position: Front Axle
    • Outer Diameter [mm]: 330
    • Surface: Coated
    • Bolt Hole Circle Ø [mm]: 120
    • Hub Diameter [mm]: 188
    • Centering Diameter [mm]: 75
    • EAN:
    Safety and product information:
    Safe payment options
    We only work with the most secure payment systems
    Product return within 30 days
    We do our very best to keep our customers happy
    We ship worldwide
    High quality car parts delivered to your doorstep
    Product compatibility verification
    We verify the compatibility between the ordered products and your vehicle

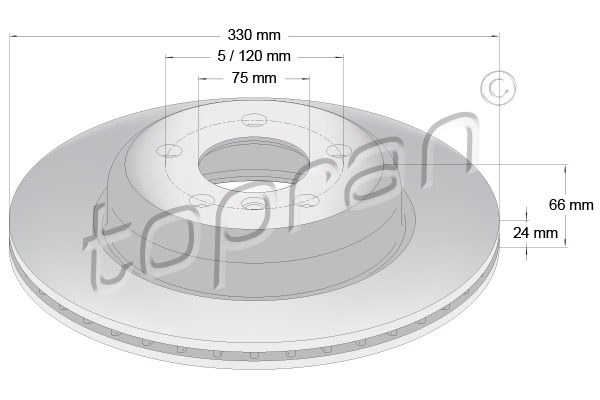

    Technical Data

    Fitting Position Front Axle
    Brake Disc Type Vented
    Surface Coated
    Outer diameter [mm] 330
    Hub Diameter [mm] 188
    Centering Diameter [mm] 75
    Brake Disc Thickness [mm] 24
    Height [mm] 66
    Rim Hole Number 5
    Bolt Hole Circle Ø [mm] 120
    Replace in pairs only

    • 520 i, Engine N20 B20 B, 2.0, 135kW, 2011 - 2016
    • 520 i, Engine N20 B20 A, 2.0, 135kW, 2011 - 2016
    • 528 i, Engine N20 B20 A, 2.0, 180kW, 2011 - 2016
    • 528 i xDrive, Engine N20 B20 A, 2.0, 180kW, 2011 - 2016
    • 530 i, Engine N53 B30 A, 3.0, 200kW, 2011 - 2013
    • 525 d, Engine N47 D20 D, 2.0, 160kW, 2011 - 2016
    • 525 d xDrive, Engine N47 D20 D, 2.0, 160kW, 2011 - 2016
    • 523 i, Engine N52 B25 A, 2.0, 150kW, 2010 - 2011
    • 523 i, Engine N52 B25 AF, 2.0, 150kW, 2010 - 2011
    • 523 i, Engine N52 B25 B, 2.0, 150kW, 2010 - 2011
    • 523 i, Engine N52 B25 BF, 2.0, 150kW, 2010 - 2011
    • 523 i, Engine N53 B30 A, 3.0, 150kW, 2009 - 2011
    • 528 i, Engine N53 B30 A, 3.0, 190kW, 2010 - 2011
    • 520 d, Engine N47 D20 C, 2.0, 135kW, 2010 - 2014
    • 525 d, Engine N57 D30 A, 3.0, 150kW, 2010 - 2011
    • 520 d xDrive, Engine N47 D20 C, 2.0, 135kW, 2013 - 2014
    • 518 d, Engine N47 D20 C, 2.0, 105kW, 2013 - 2014
    • 518 d, Engine B47 D20 A, 2.0, 110kW, 2014 - 2016
    • 520 d, Engine B47 D20 A, 2.0, 140kW, 2014 - 2016
    • 520 d xDrive, Engine B47 D20 A, 2.0, 140kW, 2014 - 2016
    • 520 d, Engine B47 D20 A, 2.0, 120kW, 2010 - 2016
    • 520 d, Engine N47 D20 C, 2.0, 120kW, 2010 - 2016

    • 520 i, Engine N20 B20 B, 2.0, 135kW, 2010 - 2017
    • 520 i, Engine N20 B20 A, 2.0, 135kW, 2010 - 2017
    • 528 i, Engine N20 B20 A, 2.0, 180kW, 2011 - 2017
    • 528 i xDrive, Engine N20 B20 A, 2.0, 180kW, 2011 - 2017
    • 530 i, Engine N53 B30 A, 3.0, 200kW, 2011 - 2013
    • 525 d, Engine N47 D20 D, 2.0, 160kW, 2011 - 2017
    • 525 d xDrive, Engine N47 D20 D, 2.0, 160kW, 2013 - 2017
    • 523 i, Engine N53 B30 A, 3.0, 150kW, 2009 - 2011
    • 528 i, Engine N53 B30 A, 3.0, 190kW, 2009 - 2011
    • 520 d, Engine N47 D20 C, 2.0, 135kW, 2010 - 2014
    • 525 d, Engine N57 D30 A, 3.0, 150kW, 2010 - 2011
    • 523 i, Engine N52 B25 A, 2.0, 150kW, 2009 - 2011
    • 523 i, Engine N52 B25 AF, 2.0, 150kW, 2009 - 2011
    • 523 i, Engine N52 B25 B, 2.0, 150kW, 2009 - 2011
    • 520 d xDrive, Engine N47 D20 C, 2.0, 135kW, 2013 - 2014
    • 518 d, Engine N47 D20 C, 2.0, 105kW, 2013 - 2014
    • 518 d, Engine B47 D20 A, 2.0, 110kW, 2014 - 2017
    • 520 d, Engine B47 D20 A, 2.0, 140kW, 2014 - 2017
    • 520 d xDrive, Engine B47 D20 A, 2.0, 140kW, 2014 - 2017
    • 520 d, Engine B47 D20 A, 2.0, 120kW, 2010 - 2017
    • 520 d, Engine N47 D20 C, 2.0, 120kW, 2010 - 2017

    BMW 3411 6 794 429
    HELLA 8DD 355 120-662 8DD 355 120-661
    ATE 24.0124-0239.2
    PAGID 65129
    VALEO 207006
    BOSCH 0 986 479 E07 0 986 AB5 960
    TEXTAR 92265825
    JURID 562889JC
    BENDIX 521777
    MAGNETI MARELLI 360406131404 360204000963
    QUINTON HAZELL BDC6005
    FEBI BILSTEIN 104803
    TRW DF8027 DF6616S
    BREMBO 09.C410.13
    FERODO DDF2039C
    ZIMMERMANN 150.3482.53 150.3482.32 150.3482.20 150.3482.52
    FTE BS7844HB
    SWAG 20 10 4803
    TRISCAN 8120 111013C
    DELPHI BG9129C BG9129BC
    METZGER 6110840
    BRECO BZ 9130
    BORG & BECK BBD6039S
    METELLI 23-1253C
    NK 341592 3415115
    OPTIMAL BS-9346HC BS-9346
    MAPCO 45760
    MEYLE 383 521 1004/PD
    REMSA 61548.10
    ROADHOUSE 61548.10
    EDR RAD1417C
    JAPANPARTS DI-0130
    ICER 78BD35552
    VAICO V20-80087
    NATIONAL NBD1825
    A.B.S. 18260 09.C410.13 18656
    LPR B2073VBR B2073V
    TRUSTING DF1635
    TRUCKTEC AUTOMOTIVE 08.34.152
    REMY RAD1417C RAD1417
    ASHIKA 60-00-0130
    CAR 142.1592
    Brake ENGINEERING DI956894
    APEC DSK3063
    FREMAX BD-3555
    HELLA PAGID 8DD 355 120-662 8DD 355 120-661
    JP GROUP 1463103700
    GIRLING 6066165
    AP 25520 Z
    KAWE 61548 10
    fri.tech. BD1635
    sbs 1815341592 18153415115
    E.T.F. 19-2603
    CIFAM 800-1253C
    WOKING D61548.10
    SAMKO B2073V
    RAICAM RD01519
    ST-TEMPLIN 53.110.33590 53.111.33590
    BLUE PRINT ADB114365
    MASTER-SPORT GERMANY 24012402392-SET-MS 24012402391PR-PCS-MS 24012402392-PCS-MS
    OPEN PARTS BDR2749.20
    MAXGEAR 19-2782SPORT 19-2782 19-2782HCSPORT 19-2782HC
    COMLINE ADC1781V AND6221
    MOTAQUIP LVBD1677
    ASHUKI by Palidium P330-239
    JAPKO 600130
    KAMOKA 103251
    ABE C3B041ABE
    BSG BSG 15-210-022
    JURATEK BMW189
    PROTECHNIC PRD2846
    BSF 11910V
    PATRON PBD1005
    ASAM 75679
    LYNXauto BN-1321
    ROTINGER RT 71005HP-GL T3 RT 4556-GL T6 RT 4556HP-GL RT 4556HP-GL T3 RT 4556HP-GL T5 RT 4556 RT 4556-GL RT 4556-GL T3 RT 4556HP-GL T6 RT 4556-GL T5 RT 4556HP RT 71005HP RT 71005HP-GL RT 71005HP-GL T5 RT 71005HP-GL T6
    NiBK RN1773
    EUROBRAKE 5815341592 58153415115
    G.U.D. GDB124239
    IJS GROUP 80-1632
    BREMSI CD8039V DBC039V
    FOMAR Friction FO 4237
    ZEKKERT BS-5916
    MAXTECH 873087.0080 873087.0060 873087.0000 873087.6880 873087.6060 873087.6980
    FIT FR0905V
    R BRAKE 78RBD23555
    EUROREPAR 1642755380 A111010046 1667863880
    BENDIX Braking BDI1825
    DIAMAX N08957
