| Voltage [V] | 12 |
|---|---|
| Rated Power [kW] | 2,2 |
| Number of mounting bores | 2 |
| Number of threaded holes | 0 |
| Number of Teeth | 13 |
| Clamp | 50 |
| Clamp | 30 |

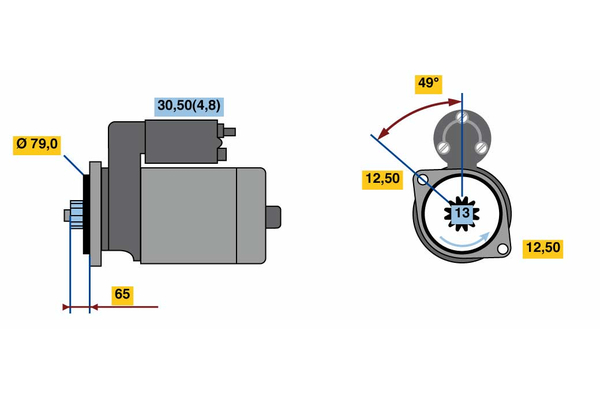

| Flange Diameter [mm] | 79 |
| Rotation Direction | Anticlockwise rotation |
| Pinion Rest Position [mm] | 61,6 |
|---|---|
| Starter Type | Floating pinion |
| Bore Diameter [mm] | 12,5 |
| Bore Diameter 2 [mm] | 12,5 |
| Length [mm] | 245 |
| Position/Degree | links |
| Mounting Angle [degrees] | 49 |
| Mounting bore angle measurement [degree] | 49 |
|
1 007 010 139 |
| Supplementary Article/Supplementary Info | with accessories |
| Quantity | 1 |
|
|
