Select your vehicle
Compatible with: CARBODIES (FX4), LAND ROVER (110/127, 90, DEFENDER, DISCOVERY, RANGE)

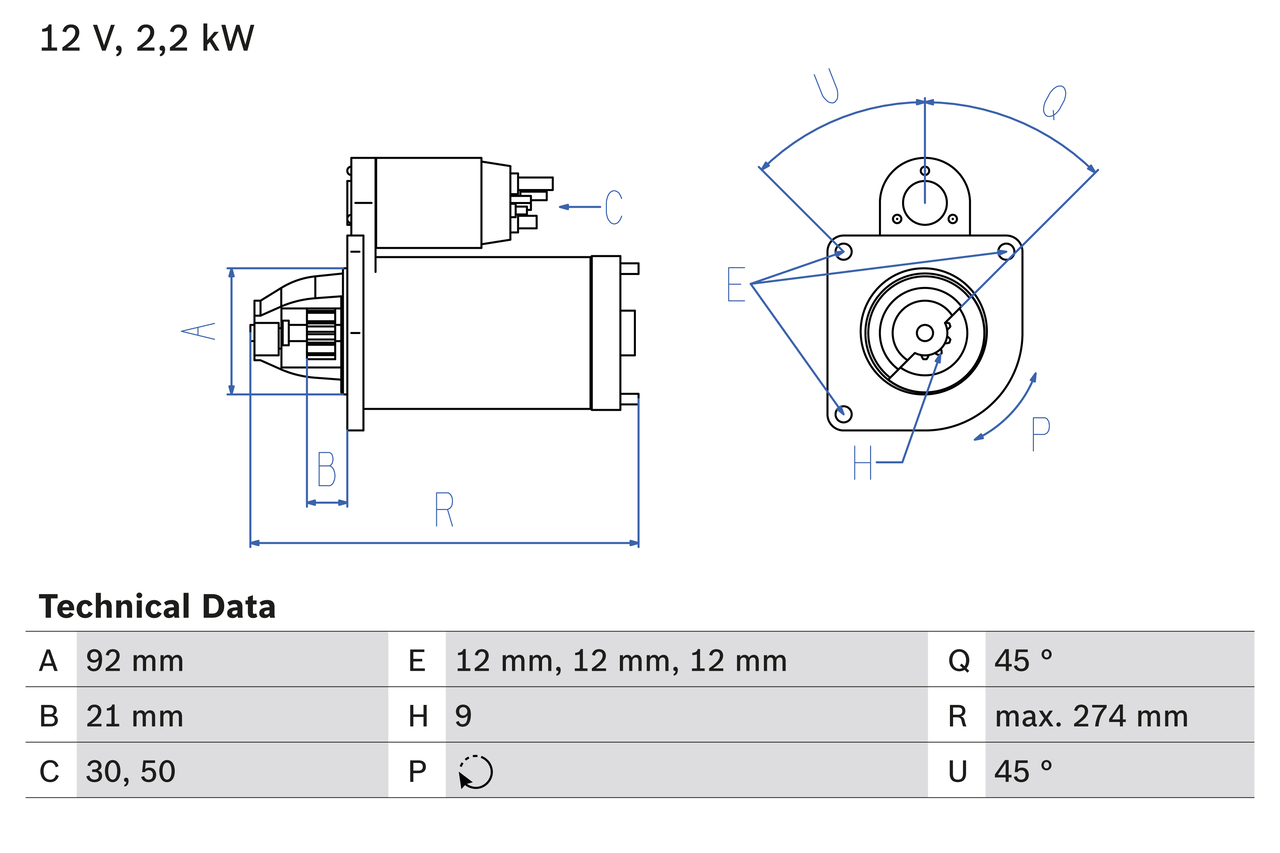

| Exchange Part | |
|---|---|
| Voltage [V] | 12 |
| Rated Power [kW] | 2,2 |
| Number of mounting bores | 3 |
| Number of Teeth | 9 |
| Clamp | 30,50 |
| Flange Diameter [mm] | 92 |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position [mm] | 21 |
| Starter Type | Self-supporting |
|---|---|
| Bore Diameter [mm] | 12 |
| Bore Diameter 2 [mm] | 12 |
| Bore Ø 3 [mm] | 12 |
| Length [mm] | 274 |
| Position/Degree | links |
| Mounting Angle [degrees] | 45 |
| Jaw opening angle measurement [Degree] | 45 |
| Mounting bore angle measurement [degree] | 45 |
|
|
