Compatible with: VW (TRANSPORTER)
| Exchange Part | |
|---|---|

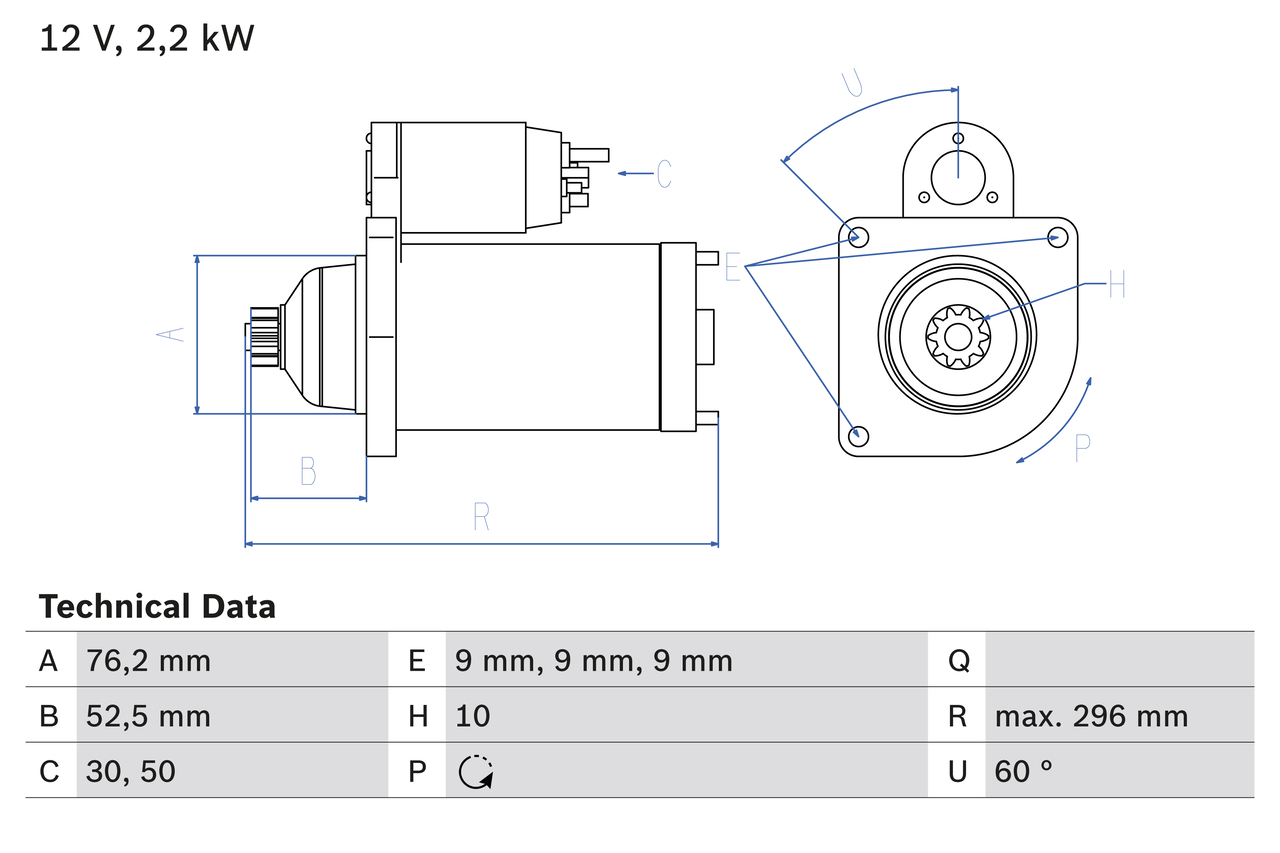

| Voltage [V] | 12 |
| Rated Power [kW] | 2,2 |
| Number of mounting bores | 3 |
| Number of threaded holes | 0 |
| Number of Teeth | 10 |
| Clamp | 30,50 |
| Flange Diameter [mm] | 76,2 |
| Rotation Direction | Anticlockwise rotation |
| Pinion Rest Position [mm] | 52,5 |
|---|---|
| Starter Type | Floating pinion |
| Bore Diameter [mm] | 9 |
| Bore Diameter 2 [mm] | 9 |
| Bore Ø 3 [mm] | 9 |
| Length [mm] | 296 |
| Position/Degree | links |
| Mounting Angle [degrees] | 60 |
| Mounting bore angle measurement [degree] | 60 |
|
|
