Select your vehicle
Compatible with: AUDI (A2, A3), FORD (GALAXY), SEAT (ALHAMBRA, AROSA, CORDOBA, IBIZA, LEON, TOLEDO), SKODA (FABIA, OCTAVIA), VW (BORA, CADDY, GOLF, LUPO, NEW, PASSAT, POLO, SHARAN, VENTO)

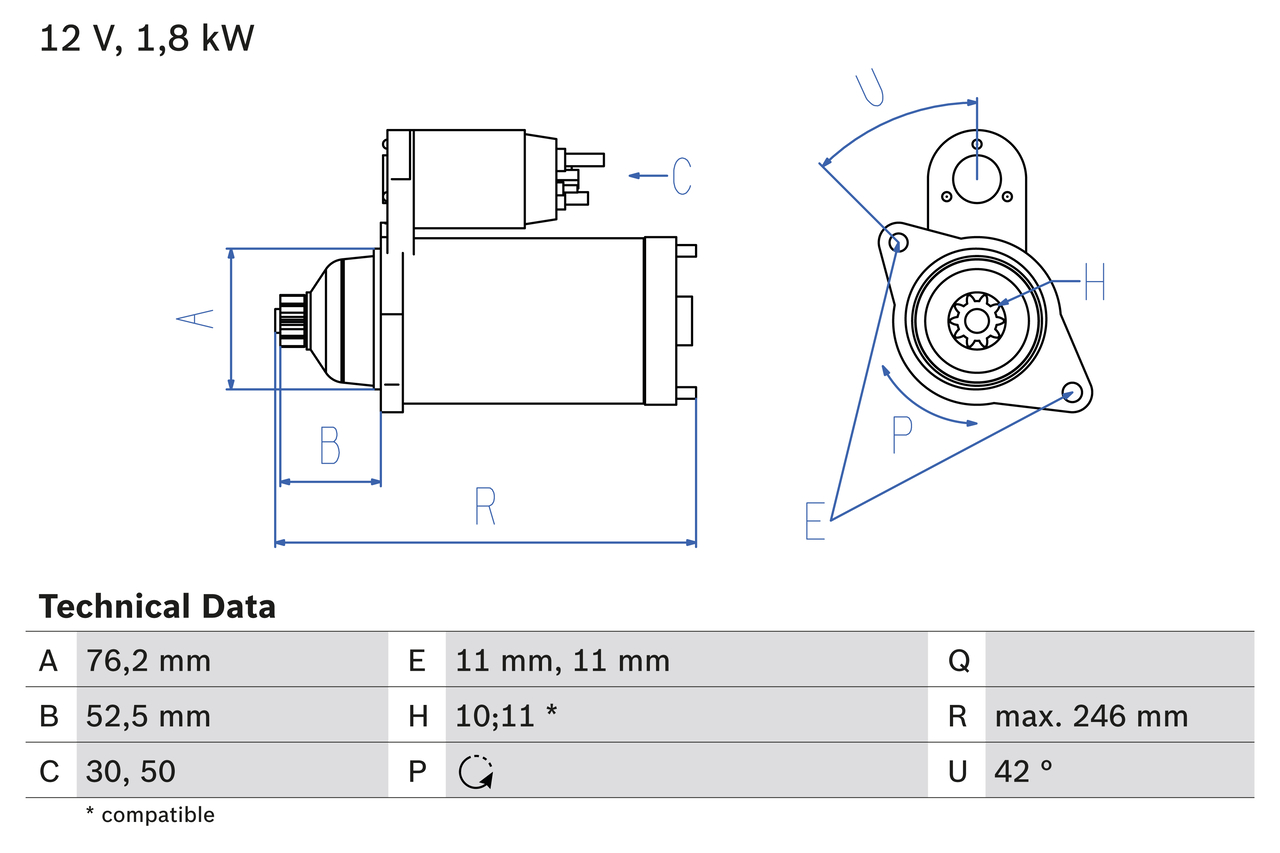

| Exchange Part | |
|---|---|
| Voltage [V] | 12 |
| Rated Power [kW] | 1,8 |
| Number of mounting bores | 2 |
| Number of threaded holes | 0 |
| Number of Teeth | 11 |
| Number of Teeth | 10 |
| Clamp | 50 |
| Clamp | 30 |
| Flange Diameter [mm] | 76,2 |
| Rotation Direction | Anticlockwise rotation |
|---|---|
| Pinion Rest Position [mm] | 52,5 |
| Starter Type | Floating pinion |
| Bore Diameter [mm] | 11 |
| Bore Diameter 2 [mm] | 11 |
| Length [mm] | 246 |
| Position/Degree | links |
| Mounting Angle [degrees] | 42 |
| Mounting bore angle measurement [degree] | 42 |
|
|
