Compatible with: CHEVROLET (AVEO), FIAT (LINEA, PUNTO), OPEL (AGILA, ASTRA, COMBO, CORSA, MERIVA, TIGRA), SUZUKI (IGNIS, SPLASH, SWIFT, WAGON)

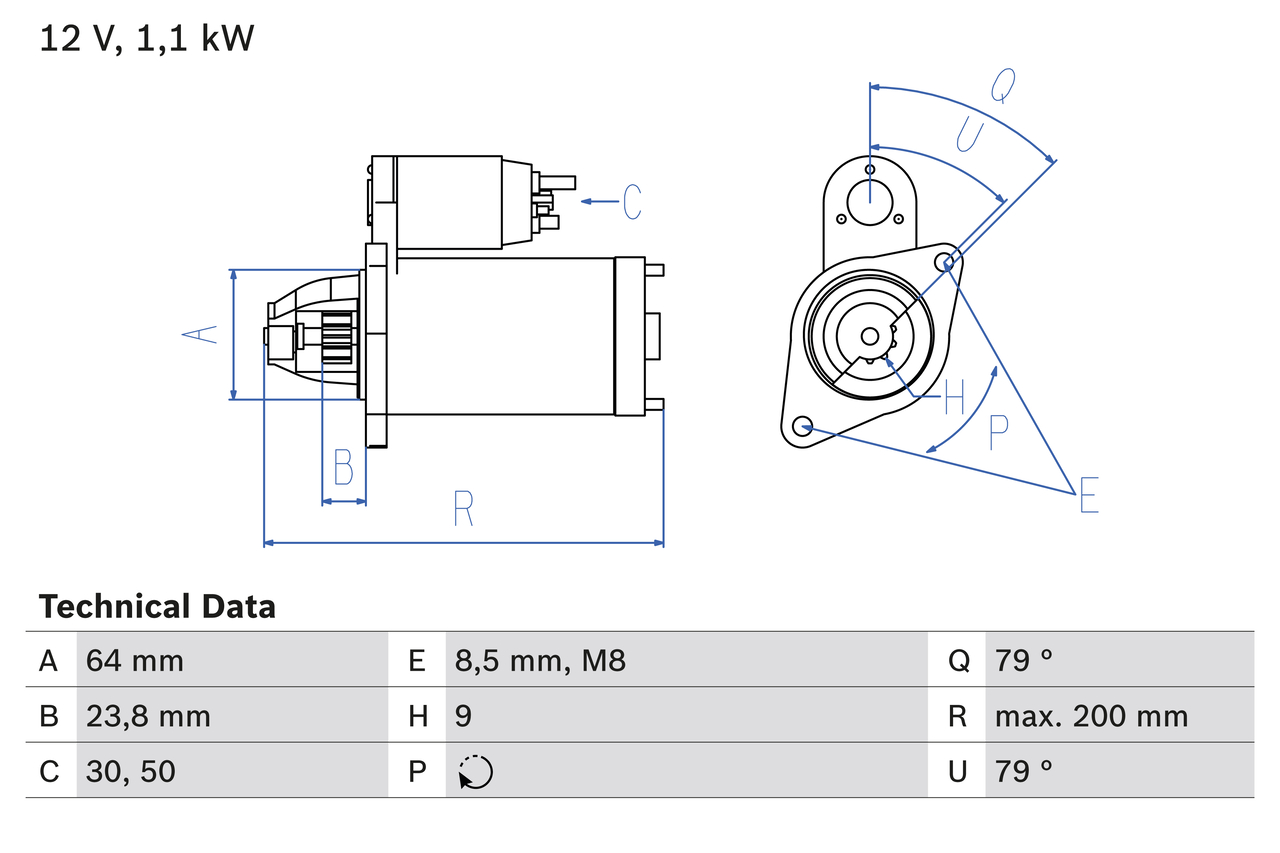

| Exchange Part | |
|---|---|
| Voltage [V] | 12 |
| Rated Power [kW] | 1,1 |
| Number of mounting bores | 1 |
| Number of threaded holes | 1 |
| Number of Teeth | 9 |
| Clamp | 30,50 |
| Flange Diameter [mm] | 64 |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position [mm] | 23,8 |
|---|---|
| Starter Type | Self-supporting |
| Thread Size | M8x1.25 |
| Bore Diameter [mm] | 8,5 |
| Length [mm] | 200 |
| Position/Degree | rechts |
| Mounting Angle [degrees] | 79 |
| Jaw opening angle measurement [Degree] | 79 |
| Mounting bore angle measurement [degree] | 79 |
|
|
