Compatible with: MAYBACH (57, 62), MERCEDES-BENZ (C-CLASS, CLK, CLS, E-CLASS, G-CLASS, GL-CLASS, GLE, GLS, M-CLASS, R-CLASS, S-CLASS, SL, SLK, SLR, SPRINTER, VIANO, VITO), PUCH (G-MODELL)

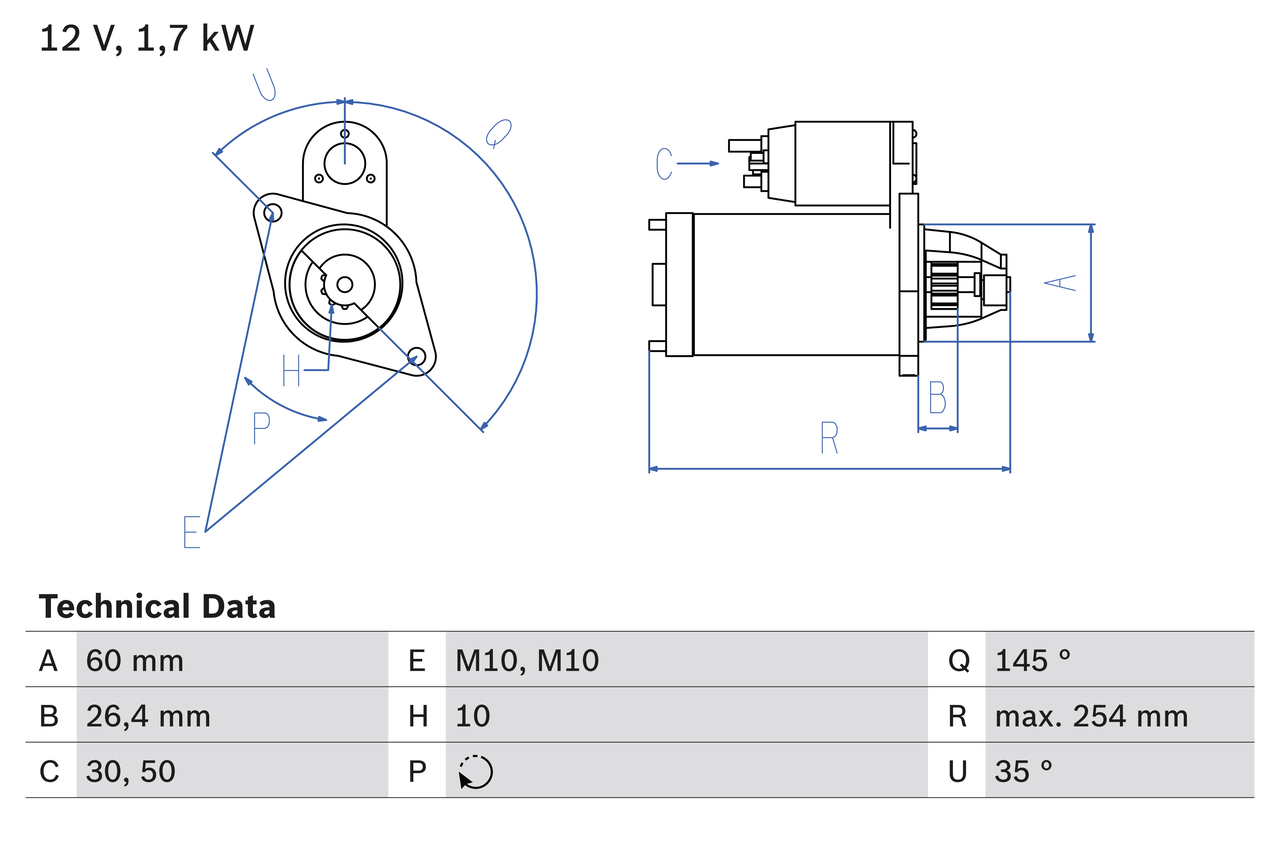

| Exchange Part | |
|---|---|
| Voltage [V] | 12 |
| Rated Power [kW] | 1,7 |
| Number of mounting bores | 0 |
| Number of threaded holes | 2 |
| Number of Teeth | 10 |
| Clamp | 30,50 |
| Flange Diameter [mm] | 60 |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position [mm] | 26,4 |
|---|---|
| Starter Type | Self-supporting |
| Thread Size | M10x1.5 |
| Thread Size 1 | M10x1.5 |
| Length [mm] | 254 |
| Position/Degree | links |
| Mounting Angle [degrees] | 35 |
| Jaw opening angle measurement [Degree] | 145 |
| Mounting bore angle measurement [degree] | 35 |
