Car Parts Online — ELART
Select your vehicle
Compatible with: CITROËN (JUMPER), FIAT (DUCATO), PEUGEOT (BOXER)

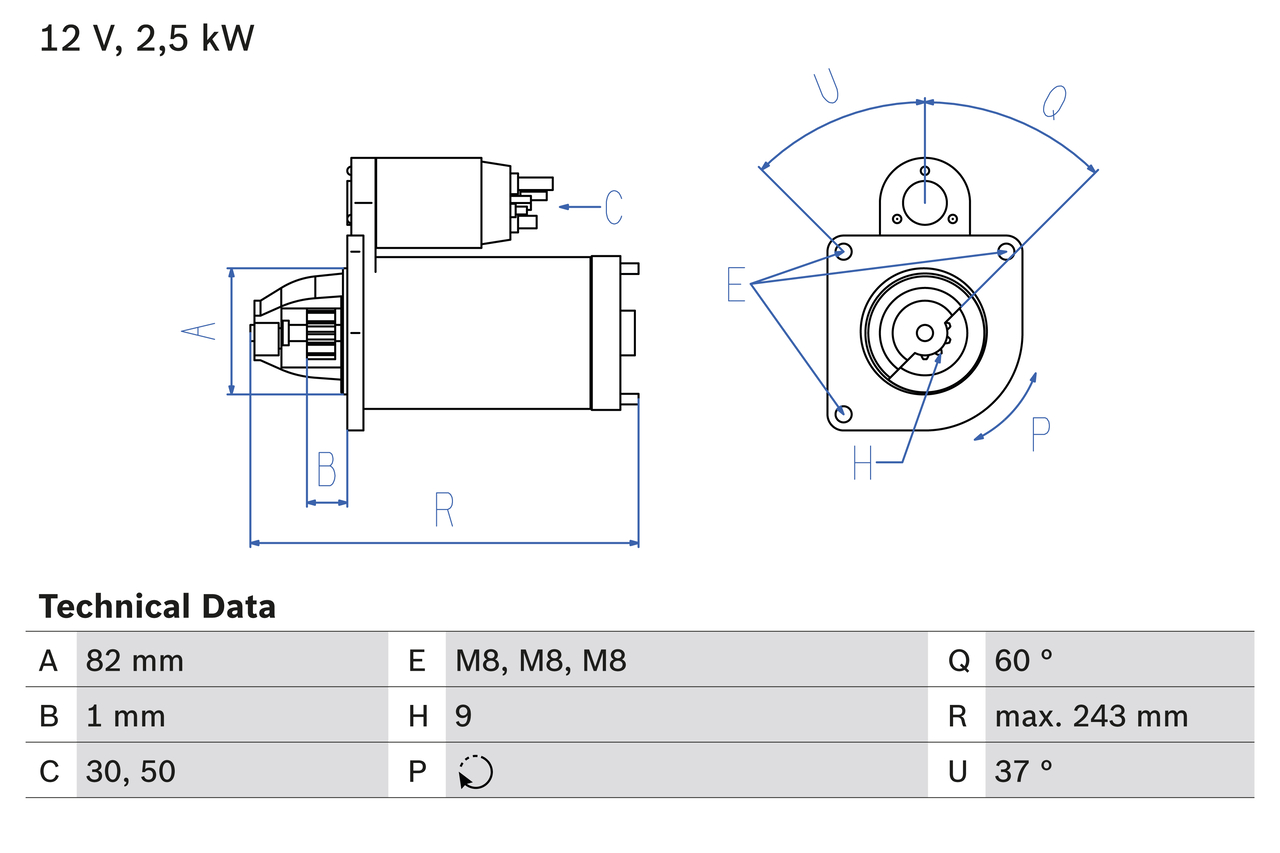

| Exchange Part | |
|---|---|
| Voltage [V] | 12 |
| Rated Power [kW] | 2,5 |
| Number of mounting bores | 0 |
| Number of threaded holes | 3 |
| Number of Teeth | 9 |
| Clamp | 30,50 |
| Flange Diameter [mm] | 82 |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position [mm] | 1 |
| Starter Type | Self-supporting |
|---|---|
| Thread Size | M8x1.25 |
| Thread Size 1 | M8x1.25 |
| Thread Size 2 | M8x1.25 |
| Length [mm] | 246 |
| Position/Degree | links |
| Mounting Angle [degrees] | 37 |
| Jaw opening angle measurement [Degree] | 60 |
| Mounting bore angle measurement [degree] | 37 |
|
|
