Compatible with: VOLVO (C30, C70, S40, S60, S80, V50, V60, V70, XC60, XC70)

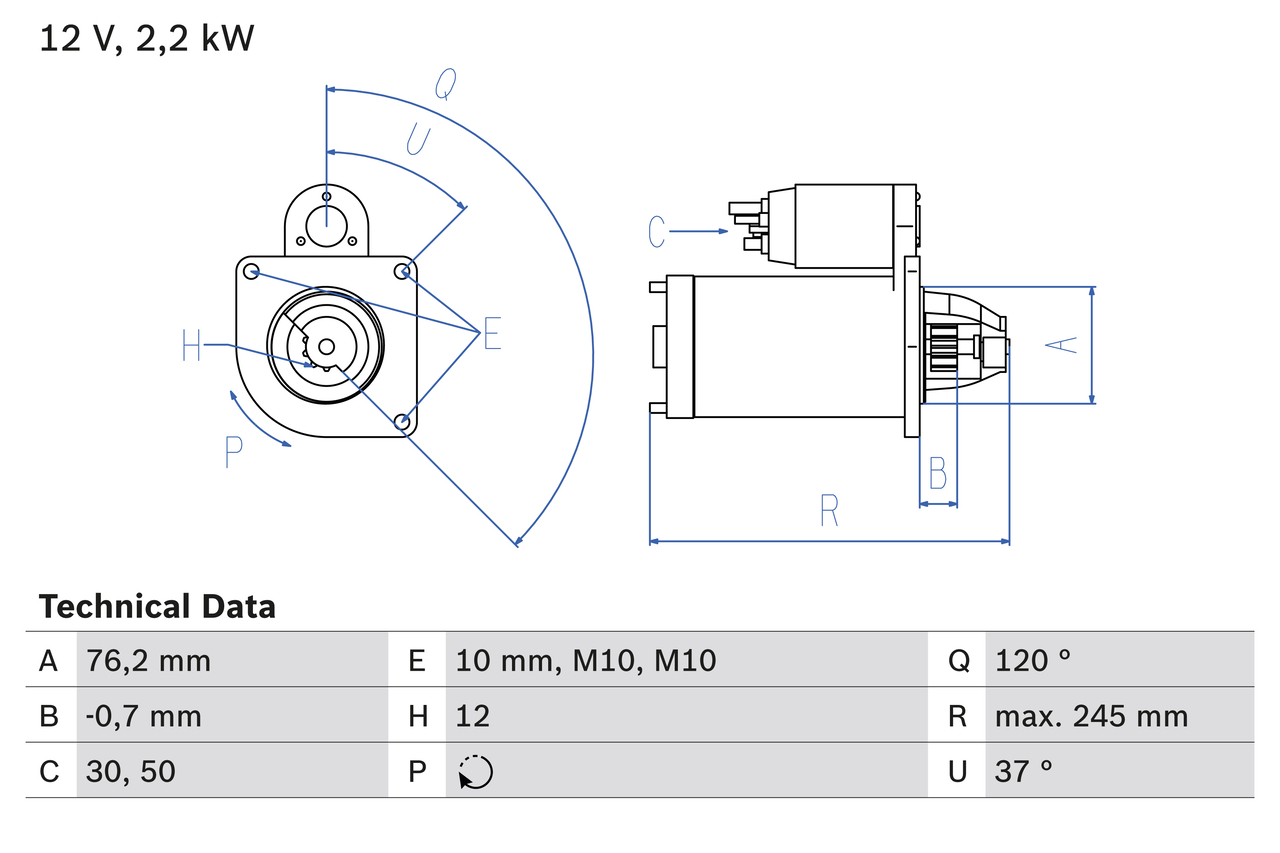

| Exchange Part | |
|---|---|
| Voltage [V] | 12 |
| Rated Power [kW] | 2,2 |
| Number of mounting bores | 1 |
| Number of threaded holes | 2 |
| Number of Teeth | 12 |
| Clamp | 50 |
| Clamp | 30 |
| Flange Diameter [mm] | 76,2 |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position [mm] | -0,7 |
|---|---|
| Starter Type | Self-supporting |
| Thread Size 1 | M10x1.5 |
| Thread Size 2 | M10x1.5 |
| Bore Diameter [mm] | 10 |
| Length [mm] | 245 |
| Position/Degree | rechts |
| Mounting Angle [degrees] | 37 |
| Jaw opening angle measurement [Degree] | 120 |
| Mounting bore angle measurement [degree] | 37 |
|
|
