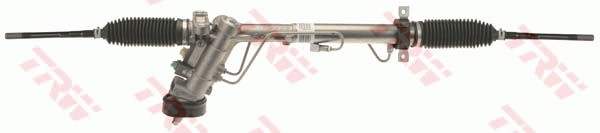

Compatible with: SKODA (FABIA, ROOMSTER)
| Operating Mode | hydraulic |
|---|---|
| Left-/right-hand drive vehicles | for left-hand drive vehicles |
| Manufacturer Restriction | TRW |
| Length [mm] | 827 |
| Overall Length [mm] | 1179 |
| Stroke [mm] | 145 |
| Input shaft height [mm] | 65 |
| Input Shaft Diameter [mm] | 15,1 |

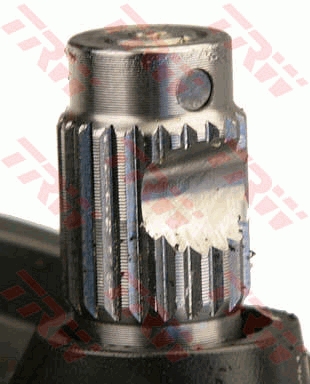

| Input shaft connector type | toothed |
|---|---|
| Number of Teeth on input shaft | 22 |
| Axle Joint Length [mm] | 175 |
| Axle Joint Thread Size | M14x1,5 |
| Pressure Line Connection Thread Size | M14x1,5 |
| Backflow Connector Thread Size | M16x1,5 |
| Observe technical data | |
| Exchange Part |
