Compatible with: SKODA (RAPID), VW (CC, EOS, GOLF, SCIROCCO, SHARAN, TIGUAN)
| Chain Type | Silent Chain |
|---|---|
| Number of chain links | 132 |
| Chain Type | Closed chain |
| Chain pitch [mm] | 8 |
|---|---|
| for OE number | 03C 198 229 C |
| Observe service information |
|
105796 |
| Chain Type | Silent Chain |
| Number of chain links | 132 |
| Chain Type | Closed chain |
| Chain pitch [mm] | 8,000 |
| Observe service information | |
| Quantity | 1 |
|

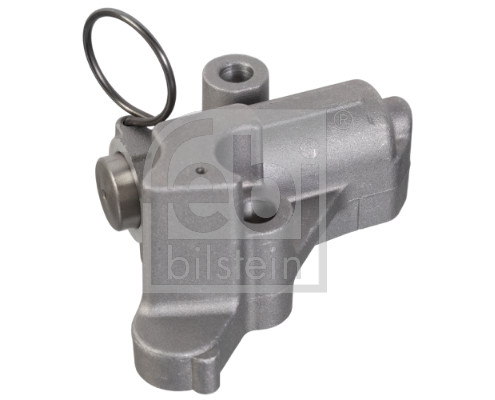

170392 |
| Length [mm] | 76 |
| Operating Mode | hydraulic |
| Quantity | 1 |
|

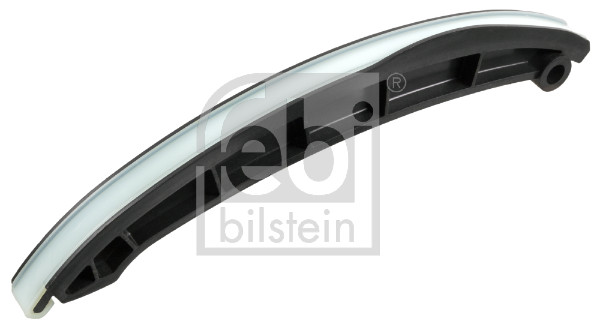

174912 |
| Friction Lining Material | Plastic |
| Material | Plastic |
| for OE number | 03C 109 509 AA |
| Quantity | 1 |
|

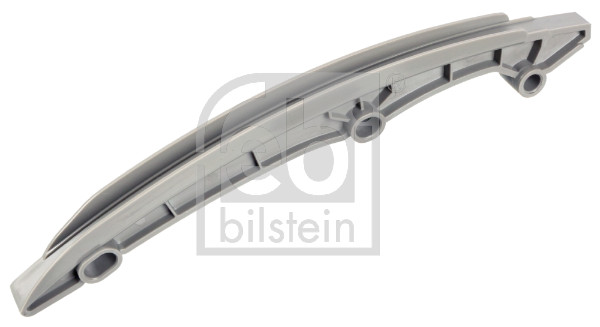

173674 |
| Friction Lining Material | Plastic |
| Material | Plastic |
| for OE number | 03C 109 469 R |
| Quantity | 1 |
|

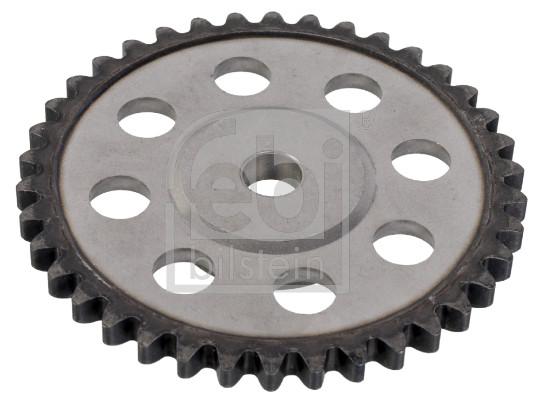

180446 |
| Number of Teeth | 38 |
| Engine Timing | Timing Chain |
| Quantity | 1 |
|

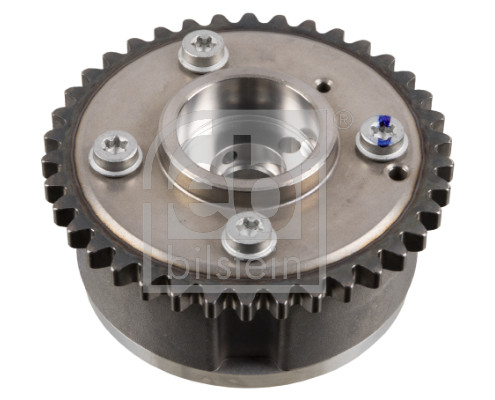

171987 |
| Number of Teeth | 38 |
| Quantity | 1 |
|

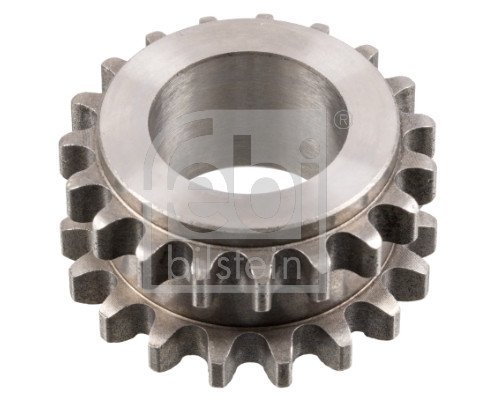

181289 |
| Number of Teeth 1 | 18 |
| Number of Teeth 2 | 19 |
| Quantity | 1 |
|

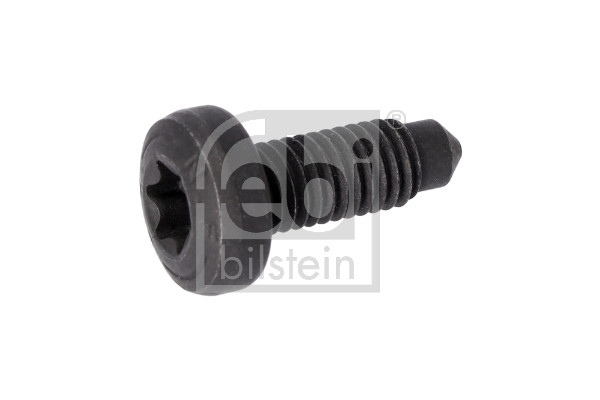

180600 |
| Quality/ Grade | 8.8 |
| Bolt Head-/Nut Design | Female Torx |
| Quantity | 1 |
|

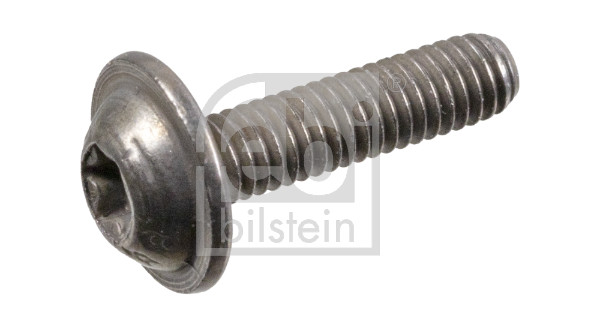

181202 |
| External Thread Size | M4 x 0,7 |
| Spanner Size | TX20 |
| Bolt Head-/Nut Design | Female Torx |
| Screw length below head [mm] | 16 |
| Quantity | 5 |
|
|
