Compatible with: DACIA (LOGAN, SANDERO), RENAULT (LOGAN)
| paired article number | 40254 |
|---|---|
| Material | Sheet Steel |
| Control/Trailing Arm Type | Control Arm |
| Fitting Position | Front Axle Left |
| Fitting Position | Lower |
| Supplementary Article/Supplementary Info 2 | with rubber mount |
|---|---|
| Supplementary Article/Supplementary Info | with attachment/mounting material |
| Supplementary Article/Supplementary Info 2 | with ball joint |
| Observe service information |
|

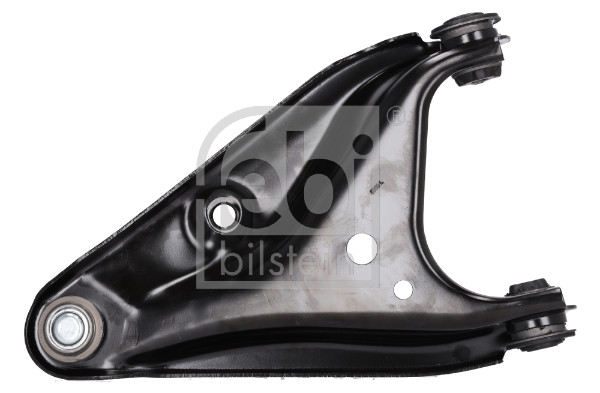

29637 |
| paired article number | 29638 |
| Material | Sheet Steel |
| Control/Trailing Arm Type | Control Arm |
| Fitting Position | Front Axle Left |
| Fitting Position | Lower |
| Supplementary Article/Supplementary Info 2 | with ball joint |
| Supplementary Article/Supplementary Info | with rubber mounts |
| Observe service information | |
| Quantity | 1 |
|
26337 |
| Length [mm] | 96 |
| Outer Diameter [mm] | 26 |
| External Thread Size | M12 x 1,75 |
| Thread Length [mm] | 35,6 |
| Quality/ Grade | 10.9 |
| Spanner Size | 18 |
| Bolt Head-/Nut Design | External Hexagon |
| Shaft Length [mm] | 49 |
| Screw length below head [mm] | 85 |
| Quantity | 2 |
|
24522 |
| Thickness [mm] | 18 |
| Outer Diameter [mm] | 22,5 |
| Internal Thread Size | M12 x 1,75 |
| Quality/ Grade | 10 |
| Spanner Size | 18 |
| Bolt Head-/Nut Design | External Hexagon |
| Material | Steel |
| Quantity | 2 |
|

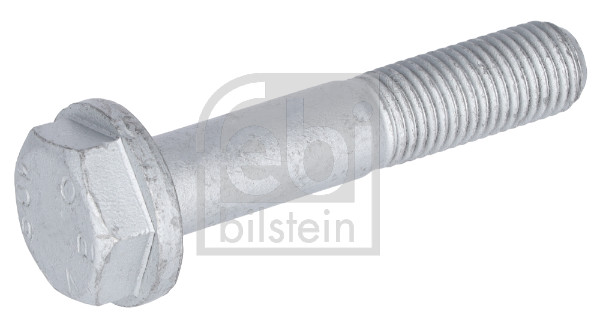

10637 |
| Length [mm] | 60 |
| Outer Diameter [mm] | 20,3 |
| External Thread Size | M10 x 1,25 |
| Thread Length [mm] | 24,5 |
| Quality/ Grade | 10.9 |
| Spanner Size | 16 |
| Shaft Length [mm] | 27 |
| Quantity | 1 |
|

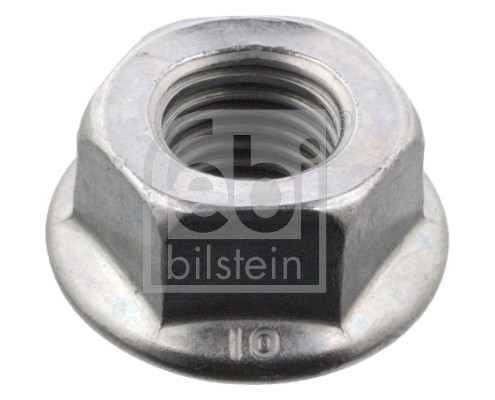

10638 |
| Thickness [mm] | 12,9 |
| Outer Diameter [mm] | 20,8 |
| Internal Thread Size | M10 x 1,25 |
| Quality/ Grade | 10 |
| Spanner Size | 16 |
| DIN/ISO | 985 |
| Quantity | 1 |
|
|
