Compatible with: AUDI (A4, A5, A6, A7, A8, Q5, Q7), VW (TOUAREG)

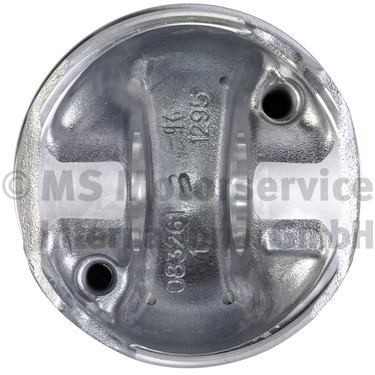

| Production Number | 083261 |
|---|---|
| Cylinder Bore [mm] | 83,5 |
| Piston Clearance [mm] | 0,07 |
| Compression Height [mm] | 46,8 |
| Length [mm] | 71,3 |
| Recess Depth 1 [mm] | 14,15 |
| Recess Diameter [mm] | 48 |
| Component Number | 100810050 |
|---|---|
| Component Number | 100820050 |
| Component Number | 100830050 |
| Bolt Head Diameter [mm] | 30 |
| Bolt Length [mm] | 68 |
| Repair Grade | 0,50 |
| Connecting Rod Design | Trapezoidal Connecting Rod |
|
100810050 |
| Height [mm] | 1,5 |
| Thickness [mm] | 3,05 |
| Cylinder Bore [mm] | 83,5 |
| Surface | Amorphous carbon coating (DLC) |
| Surface | Blank |
| Material | Steel |
| Quantity | 1 |
|
100820050 |
| Height [mm] | 1,5 |
| Thickness [mm] | 3,2 |
| Cylinder Bore [mm] | 83,5 |
| Surface | Chromed |
| Surface | Blank |
| Material | Cast Iron with Ductile Iron |
| Quantity | 1 |
|
100830050 |
| Height [mm] | 2 |
| Thickness [mm] | 2,75 |
| Cylinder Bore [mm] | 83,5 |
| Surface | Chrome ceramic coated |
| Surface | Blank |
| Material | Cast Iron with Ductile Iron |
| Quantity | 1 |
