Compatible with: JEEP (COMPASS), MERCEDES-BENZ (A-CLASS, B-CLASS, C-CLASS, CLA, E-CLASS, GLA-CLASS, GLK-CLASS, MARCO, SPRINTER, V-CLASS, VIANO, VITO)

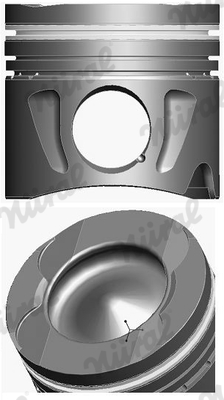

| Production Number | 08349P202 |
|---|---|
| Supplementary Article/Supplementary Info 2 | with cooling duct |
| Supplementary Article/Supplementary Info 2 | with piston ring carrier |
| Recess Depth 1 [mm] | 13,25 |
| Piston Clearance [mm] | 0,054 |
| Compression Height [mm] | 48,5 |
| Height [mm] | 75,5 |
| Cylinder Bore [mm] | 83 |
| Bolt Head Diameter [mm] | 30 |
|---|---|
| Recess Diameter [mm] | 49,4 |
| Bolt Length [mm] | 66 |
| Component Number | 08-433400-00 |
| Machined | with cut-out for oil jet |
| Standard Size [STD] | |
| Power to [kW] | 120 |
|
|
