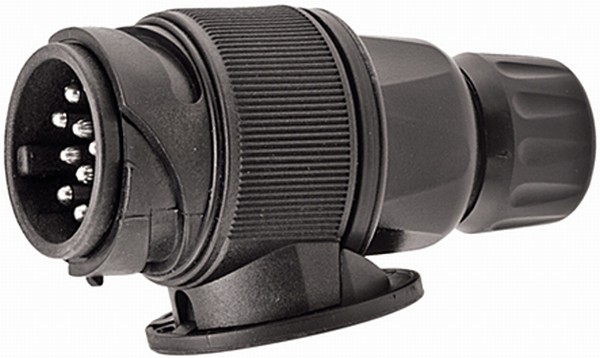

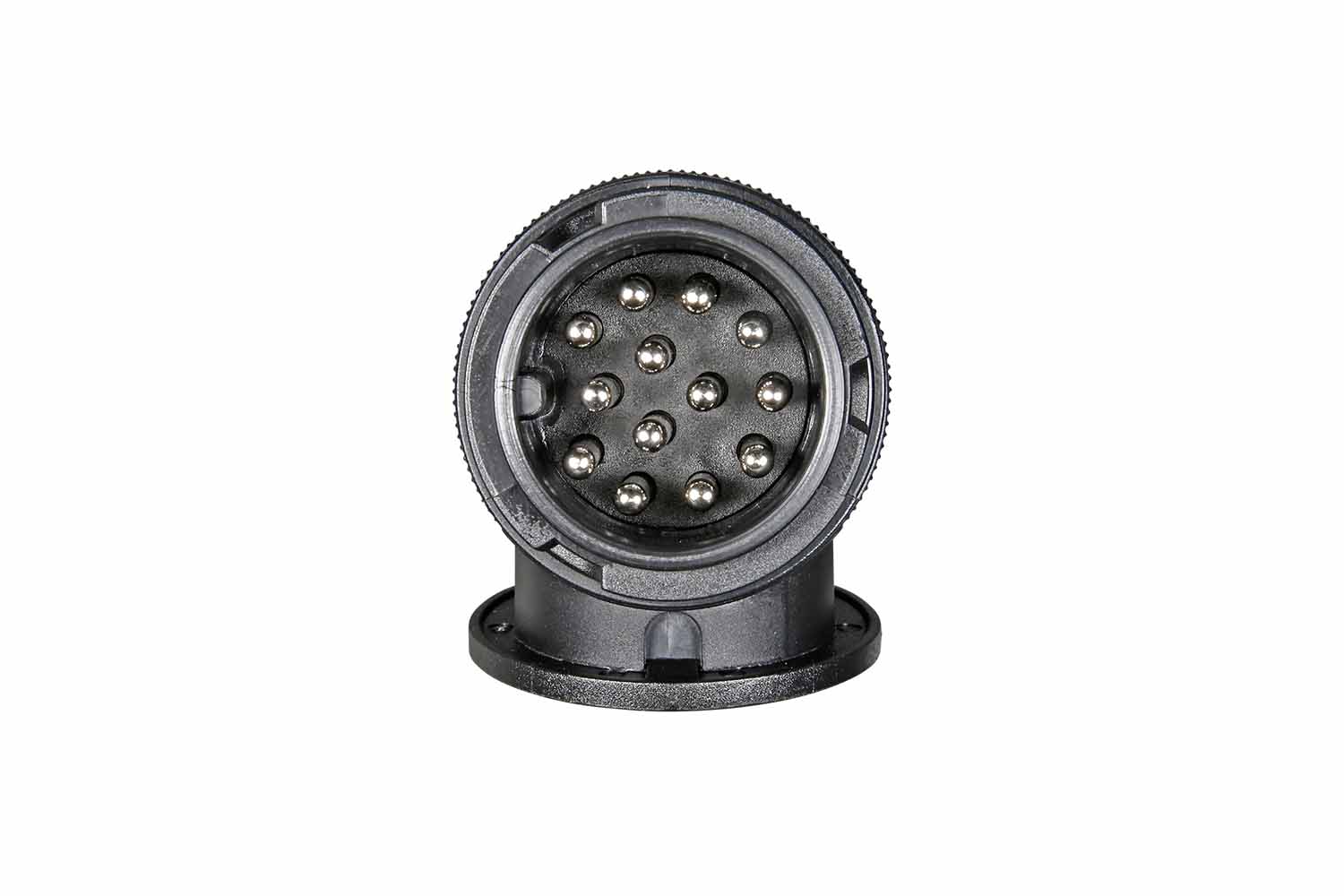

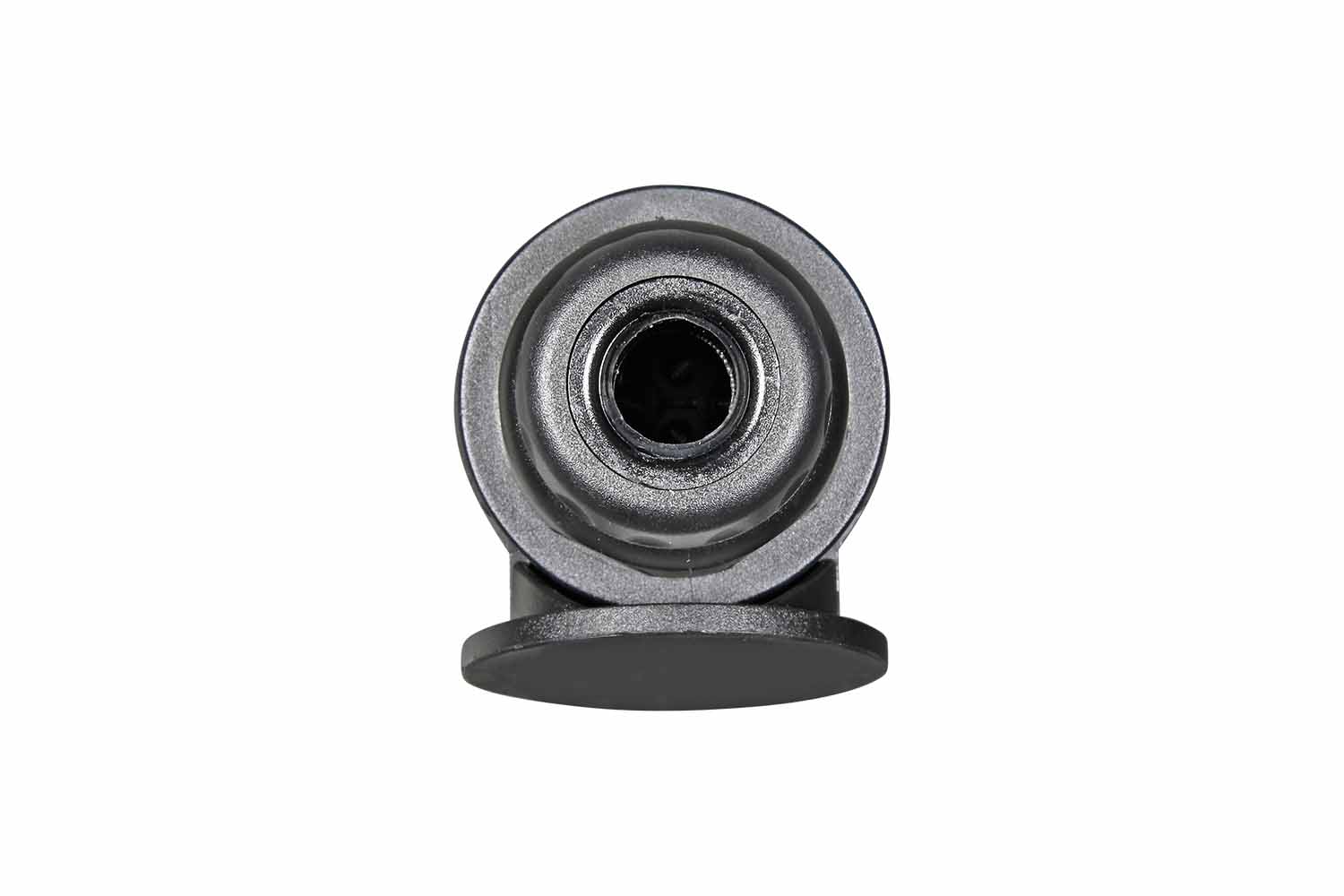

Plug - 8JA 005 951-001 HELLA

Plug - 8JA 005 951-001 HELLA

Plug - 8JA 005 951-001 HELLA

Plug - 8JA 005 951-001 HELLA

Plug - 8JA 005 951-001 HELLA

Plug - 8JA 005 951-001 HELLA

Plug - 8JA 005 951-001 HELLA

Plug - 8JA 005 951-001 HELLA

Part Number: 8JA 005 951-001

0 Reviews

Brand: HELLA

Only 5 left in stock

Order before 4pm → dispatched next business day

Original Parts

30-Day Returns

Shipping:Tomorrow (15 July)

Delivery Time: 18 – 20 July

Plug Type:Screw Contact
Rated Voltage [V]:12
Capacity at 12V:16A
EAN:4082300016093

Safety and product information:

Technical Data

Number of pins	13
DIN/ISO	11446 N-Typ
Plug Type	Screw Contact
Colour	black
Voltage [V]	12
Current Strength from [A]	16
Current Strength to [A]	25

Cable Diameter from [mm]	9
Cable Diameter to [mm]	14
Cross Section [mm²] from	1,5
Cross Section [mm²] to	2,5
Quantity	1
Assy./disassy. by qualified personnel required!

AEBI	0241559-4 0241622-0 1240955-6 18-3420237
AUDI	KDWHLO9065
AUWÄRTER	348-ST008
KÄSSBOHRER	7.231.343.000.0
MERCEDES-BENZ	000 454 81 52 A 000 454 81 52
SCANIA	2376011
VAN HOOL	11646173
VW	KDWHLO9065
JAEGER	221029 71400010
CASE IH	0 325227 8 84007467
SAME	01231939
LIEBHERR	1 001 959 6 001 959 6 050 006 08
DEUTZ-FAHR	012 31939
FENDT	D 449 009 93
EVOBUS	A 372 545 02 28
GOLDHOFER	157373
KÖGEL	70024973
MEGA	513.12.20
NOOTEBOOM	0223129
RENDERS	W710117
STILL	999038
FUCHS	440.50.95
KOMATSU	B 969 271 456 011
KRAMER	1000105126
VALMET	32477700
AGCO	003225205000 D44900993 LA322520500
YANMAR	5350661292
HYMER	0415252 0416772 0416772-00
ZIEGLER	402747
PUTZMEISTER	245803004
KRONE	5809834/0
LANGENDORF	1134639
SCHMITZ CARGOBULL	0077474
TEREX	5350661292
JUNGHEINRICH	51375096
BROSHUIS	35417020
MAFI	000,579,1946
REISCH	5003024
SOMMER	2800753001 2898042001
WEIRO	12322
AMMANN	1814677
SOLARIS	1022-007637-00
BUCHER	7615-4520
VDL	11646173
LINDNER	3005561
AGRIFAC	7774190
SCHWARZMÜLLER	71653
FAYMONVILLE	9997
FELDBINDER	004940
ROSENBAUER	081038
LAIKA	0415252

HELLA	005 951-001 005951001 8JA 005 951-001 8JA 005 951-007 8JA 005 951-037
BOSCH	0 986 352 004 0 986 352 004 090 0 986 352 013 0 986 352 013 090
BREMI	10472
HERTH+BUSS ELPARTS	51 305 630
FACET	1.0425 1.0522
ERICH JAEGER	221029
MENBER S	005113.00 005113.90
TITGEMEYER	967023
HC-Cargo	180212
JOKON	45.0001.000
