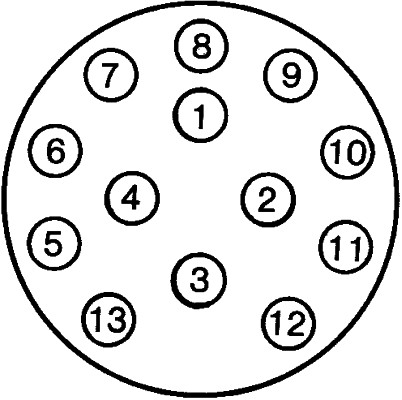

| Number of pins | 13 |
|---|---|
| Voltage [V] | 12 |
| DIN/ISO | 11446 N-Typ |
| Number of bores | 3 |
| Colour | black |
| Cross Section [mm²] from | 1,5 |
| Cross Section [mm²] to | 2,5 |
| Current Strength from [A] | 16 |
| Current Strength to [A] | 25 |
| Temperature range from [°C] | -40 |
|---|---|
| Temperature range to [°C] | +85 |
| Depth [mm] | 45 |
| Diameter [mm] | 72 |
| Bore Diameter [mm] | 6 |
| Plug Type | Screw Contact |
| Quantity | 1 |
| Assy./disassy. by qualified personnel required! |
|
|
