| Mounting Type | Bolted |
|---|---|
| Mounting Type | mounting |
| Fastening Type | Swivelling Mounting Bracket |
| Light Design | LED |
| Lamp Type | LED |
| Voltage [V] | 24 |
| Voltage [V] | 12 |

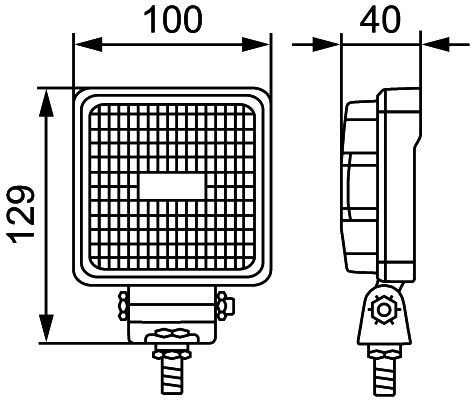

| Height [mm] | 129 |
| Width [mm] | 100 |
| Depth [mm] | 40 |

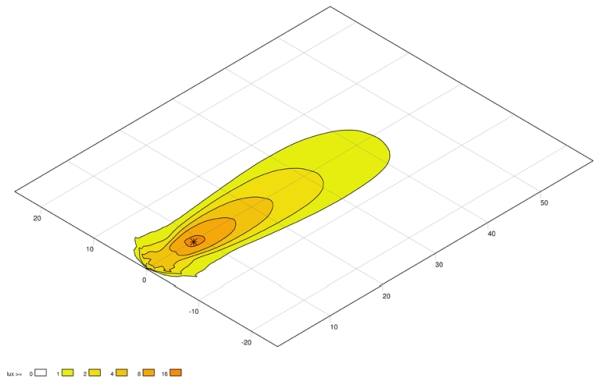

| Light Distribution | Short-Range Illumination |
| fulfils ECE standard | R10 |
| Plug Type | open cable ends |
| Protection Type (IP Code) | IP6K9K |
|---|---|
| Protection Type (IP Code) | IP6K7 |
| Luminous Flux [lm] | 800 |
| Colour Temperature [K] | 6000 |
| Number of LEDs | 5 |
| Power Consumption [W] | 9 |
| Cable Length [mm] | 800 |
| Housing Type | Aluminium Housing |
| Housing Colour | black |
| Diffusing Lens Material | Polyamid 12 |
| Diffusing Lens Type | Patterned diffusing lens |
| Assy./disassy. by qualified personnel required! |
